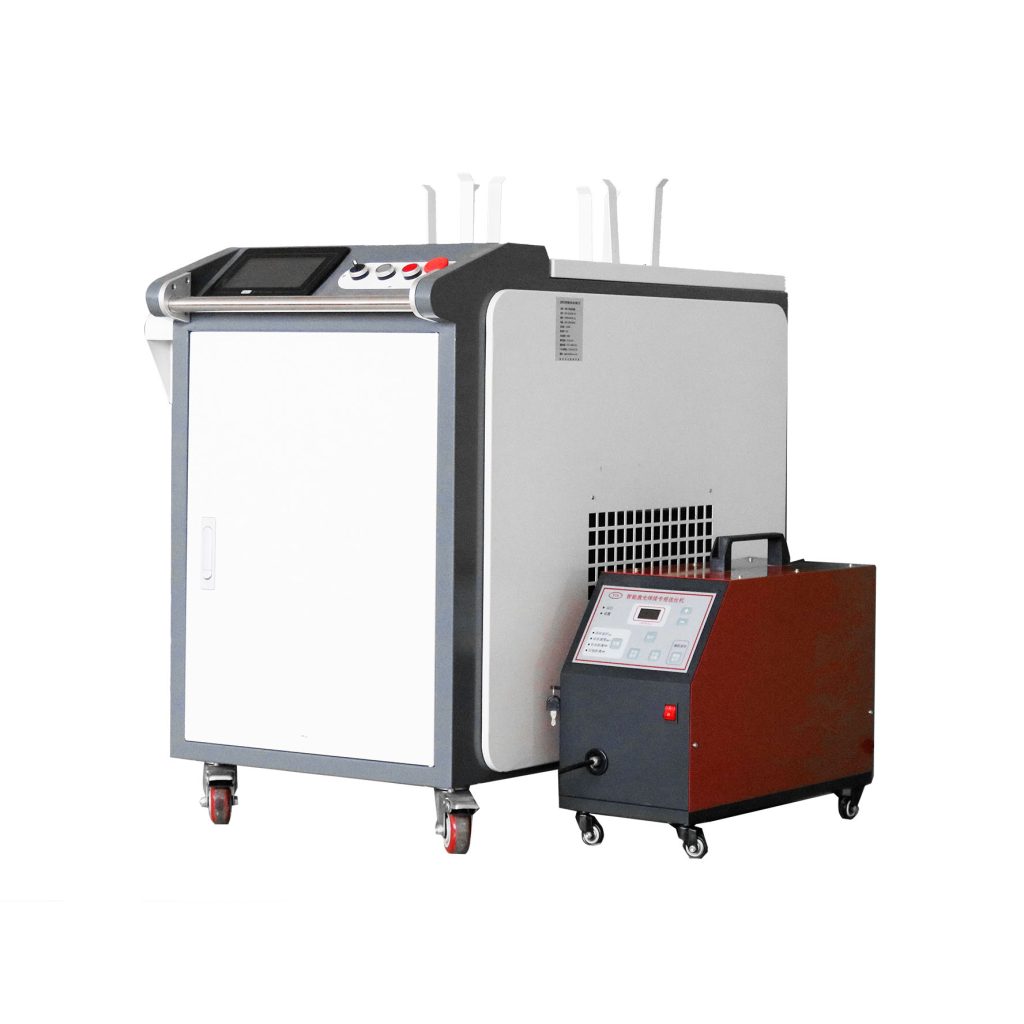

Handheld Fiber laser welding machine
Handheld Fiber laser welding machine is a laser welding equipment which couples the high energy laser beams into the optical fiber, after long-distance transmission, then transformed into parallel lights through collimating mirror to be focused on the work piece to implement the welding. The welding methods include vertical welding, parallel welding, stitch welding and so on.
Features
1.Speed is faster than the traditional welding speed by more than two times.
2.Smooth welding seam, without subsequent grinding, saving time and cost.
3.Easy operation, no need experience can do a good job.
4.power savings, processing costs are reduced
Technical Parameters
| Name | Handheld Fiber Laser Welding Machine | ||||
| Model# | DC-LFW1000H | DC-LFW1500H | DC-LFW2000H | ||
| Core parts | Max/Raycus/JPT fiber laser | ||||
| DC laser welding head，DC handheld welding control system, wire feeder | |||||
| Power | 1000W | 1500W | 2000W | ||
| Fiber length | 10m | ||||
| Laser Wavelength | 1080nm | ||||
| Power adjustment range | 1%-100% | ||||
| Frequencey range | 50-30000Hz | ||||
| Shielding Gas | Argon,Nitrogen | ||||
| Duty Ratio | 1%-100% | ||||
| Welding depth | 0.5-2.0mm | 0.5-3.0mm | 0.5-4.0mm | ||
| Full Power Consumption | 5.0KW | 6.8KW | 8.5KW | ||
| Welding mode | Dot, line, circle, double circle, triangle, 8 and so on | ||||
| Cooling method | Built in water cooler | ||||
| Size | 1010*630*1120mm | ||||
| Power supply and work temperature | Single phase AC 220V 50Hz 10-35℃ |
three-phase AC 380V 50Hz 10-35℃ |
|||
Sample Show
Application Area
Large and medium-sized sheet metal, cabinet, chassis, aluminum alloy doors and Windows frame, shelves, stairs, advertising words
Stainless steel washbasin and other large parts of the inner Angle, outer Angle, joint distance spot welding, full welding.
