fiber laser marking machine with enclosure

The full-closed type 20w fiber laser marking machine adopts the portable design and is easy to move and work in different place. It has no consumables, so the depreciation cost of the product is greatly reduced. It has the advantages of high efficiency, long service life and maintenance free, which the traditional laser doesn’t have.It is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.

  • Product Details

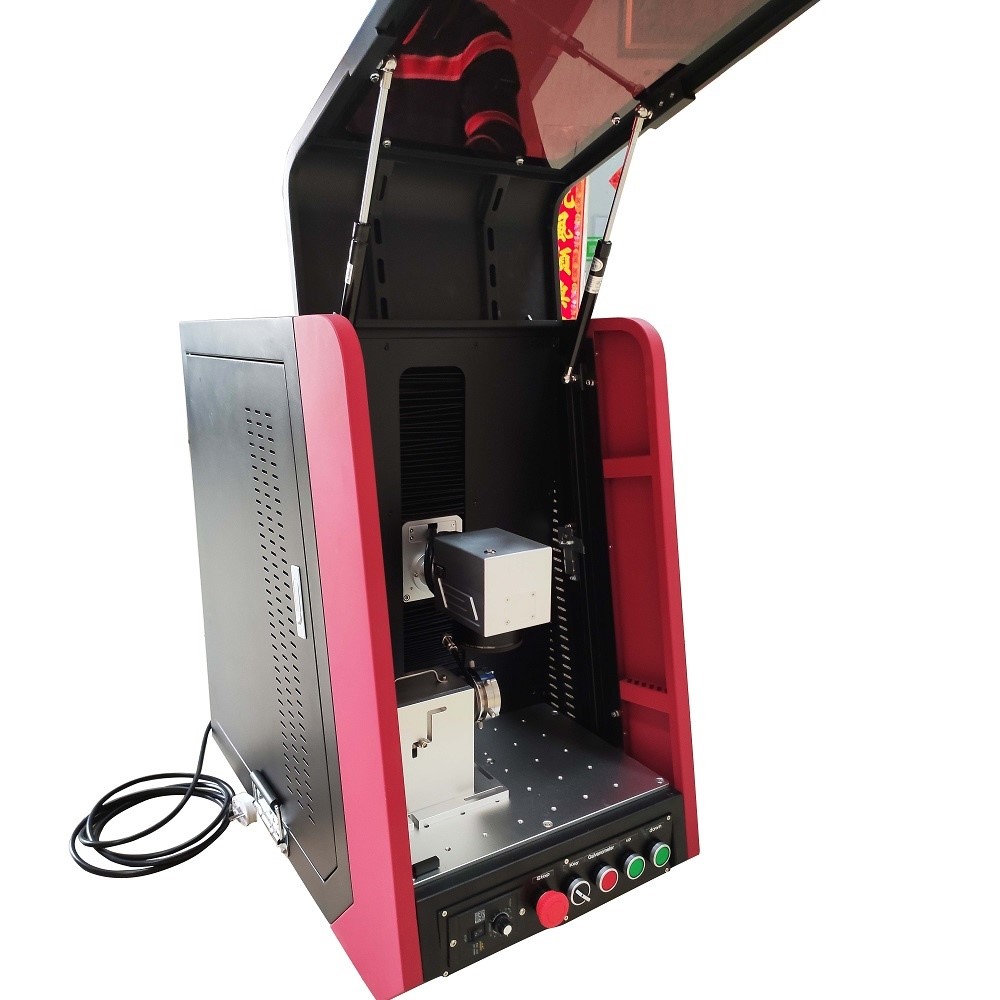

Full Enclosed fiber Laser Marking Machine

The full-closed type 20w fiber laser marking machine adopts the portable design and is easy to move and work in different place. It has no consumables, so the depreciation cost of the product is greatly reduced. It has the advantages of high efficiency, long service life and maintenance free, which the traditional laser doesn’t have.It is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.

Product Advantages of Mobile Laser Marking Machine

1. High definition: Resolution is up to 1 micron and is at least 10 times higher than traditional machines.
2. Less power consumption: It’s 1 / 25 ~1 / 10 of traditional laser markers.
3. High speed: 3~5 times faster than traditional laser markers.
4. High stability: higher than any other similar ones.
5. Long service life: 10 times longer than traditional ones.

Technical Information

Average output power 20W (CW or pulse)
Wavelength 1064nm
Power Modulation Range 10-100%
Pulse Repetition Frequency 20-100KHz
Output Beam Quality <1.5
Marking Depth ≤1.2mm
Min. Focusing Spot 0.005mm
Min. Character Height 0.15mm
Max. Marking Speed 12000mm/s
Format Supported Graphics, text, bar code, two-dimensional code, date, frequency, batch number, serial number, file link.
Operating System It can work with win7,win8 and XP.
It support PLT, PCX, DXF, BMP and so on.
It can use directly SHX and TTF font.
Re-precision ±0.001mm
Overall Power ≤160W
Power Supply 220V±10%/50Hz/4A
Cooling Air Cooling
Control Interface USB
Laser Module Life >100000h
Galvanometer High performance scanning galvanometer
Working Environment No dust and no source of vibration

Sample Show

Application area

It is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.
